Poor Man's Log Viewer with OpenSearch and FluentBit

Over the weekend I was talking to a friend about troubleshooting remotely, logging and monitoring. It would be cool if we could spin up a temporary log viewer on the fly for fast troubleshooting, and then tear it down just as easily once the issue is resolved. In this article, I will demonstrate how to setup a simple logging pipeline using OpenSearch and FluentBit.

Florence, Italy. Photo by Author.

Log analysis is the most basic and the first step in troubleshooting any application. Cloud based log analysis tools like DataDog, Microsoft Sentinel, etc. are great and very well integrated into cloud platforms. But they can drive cloud costs up and may not always be the best option for small teams or pre-prod and other uses cases. I want to present an on-demand logging pipeline that can be setup and torn down quickly, using OpenSearch, FluentBit and Docker.

OpenSearch is a community driven, open source observability suite. With OpenDashboards, we can visualize the logs, create alerts, anomaly detection, etc. FluentBit is an open source, lightweight log processor and shipper/forwarder.

Docker Compose for OpenSearch

Here's a working docker-compose.yml for OpenSearch and Dashboards:

version: '3.8'

services:
  opensearch:
    image: opensearchproject/opensearch:2.11.1
    container_name: opensearch
    environment:
      - discovery.type=single-node
      - bootstrap.memory_lock=true
      - OPENSEARCH_INITIAL_ADMIN_PASSWORD=_PutAPasswordHere_
      - plugins.security.ssl.http.enabled=false
      - plugins.security.disabled=false
      - OPENSEARCH_JAVA_OPTS=-Xms512m -Xmx512m
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - opensearch-data:/usr/share/opensearch/data
    ports:
      - '9200:9200'
      - '9600:9600'
    networks:
      - opensearch-net

  dashboards:
    image: opensearchproject/opensearch-dashboards:2.11.1
    container_name: dashboards
    environment:
      - OPENSEARCH_HOSTS=["http://opensearch:9200"]
      - DISABLE_SECURITY_DASHBOARDS_PLUGIN=false
    ports:
      - '5601:5601'
    depends_on:
      - opensearch
    networks:
      - opensearch-net

volumes:
  opensearch-data:

networks:
  opensearch-net:
    driver: bridge

Start it with:

docker compose up -d

The opensearch-data volume in the Docker Compose ensures your data is persisted even if you restart or tear down the containers. If you're using this setup temporarily, you can delete this volume to start fresh each time:

docker volume rm your_project_name_opensearch-data

If you're using this in a dev/test/staging pipeline, keeping the volume will help retain logs between sessions.

Once started, OpenSearch will be available at http://localhost:9200.

Output from my OpenSearch instance:

curl http://admin:your-password-here@localhost:9200

{
  "name" : "7eac53284afe",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "UUs6nDxJQEmFuQ2iKjHTqA",
  "version" : {
    "distribution" : "opensearch",
    "number" : "2.11.1",
    "build_type" : "tar",
    "build_hash" : "6b1986e964d440be9137eba1413015c31c5a7752",
    "build_date" : "2023-11-29T21:43:10.135035992Z",
    "build_snapshot" : false,
    "lucene_version" : "9.7.0",
    "minimum_wire_compatibility_version" : "7.10.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "The OpenSearch Project: https://opensearch.org/"
}

OpenDashboards will be available at http://localhost:5601.

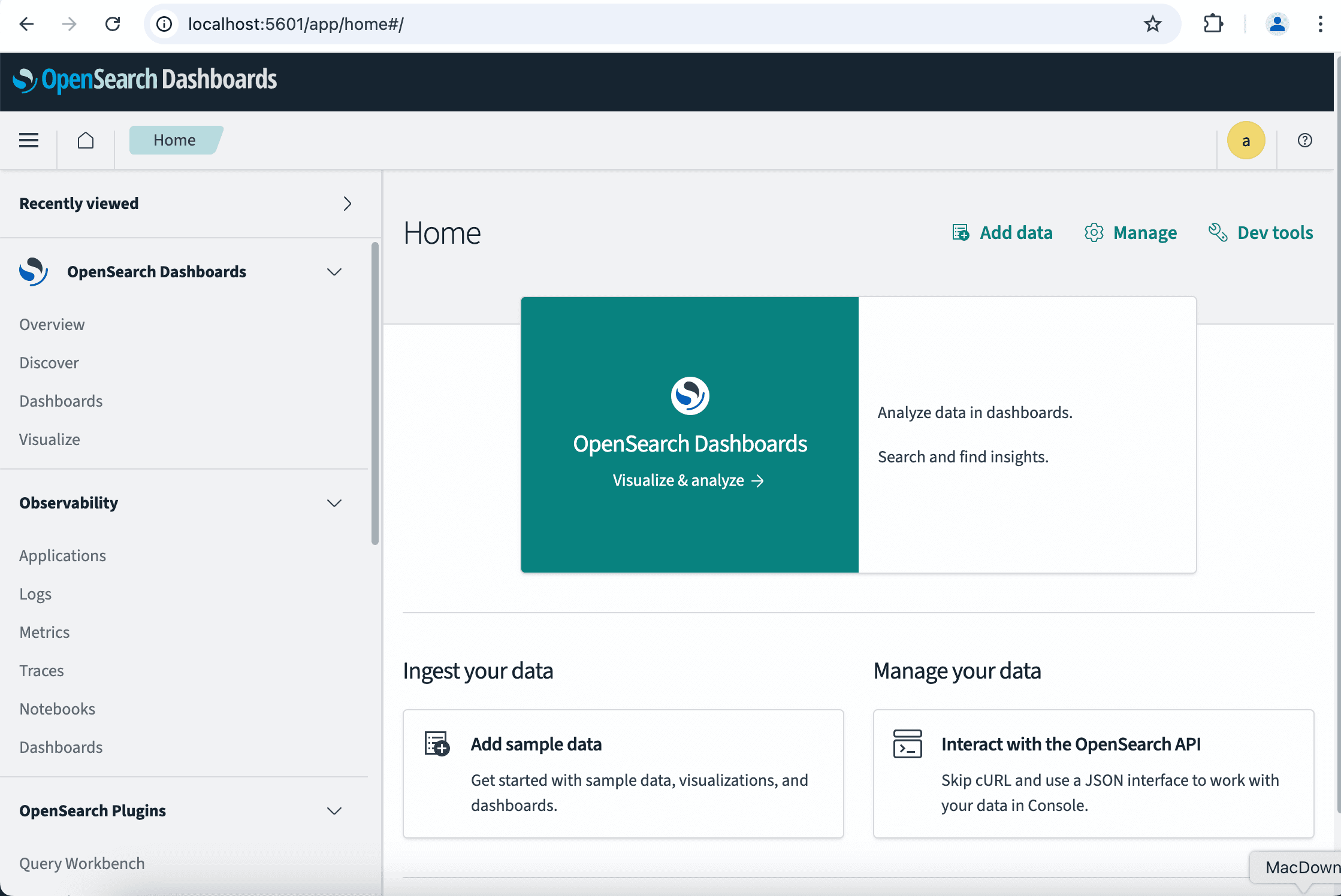

OpenSearch Dashboard

Login to Dashboards at http://localhost:5601 using admin/your password.

Fluent Bit Setup

There are multiple ways to install FluentBit based on your environment. I installed it with Homebrew:

brew install fluent-bit

I could have used Docker or Kubernetes to run FluentBit but stuck with native install for simplicity.

Quick note about FluentD. FluentD is a full-fledged log collector and processor ecosystem. FluentBit is built on the same architecture but is more performant and lightweight. Fluent Bit is considered the next-generation solution. Read more here.

To upload logs using FluentBit, we need to configure it to read logs from a given directory. Here's the configuration I used. You can click here to read more details on FluentBit configuration.

[SERVICE]
    flush        5
    daemon       Off
    log_level    info

[INPUT]
    Name              tail
    Path              /Users/psingh/dev/pml/logs/*.log
    Read_from_Head    true
    Skip_Long_Lines   On
    Refresh_Interval  5
    Tag               batch.log
    DB                /tmp/fluentbit.db
    DB.Sync           Normal

[FILTER]
    Name record_modifier
    Match *
    Record hostname ${HOSTNAME}

[OUTPUT]
    Name es
    Match *
    Host localhost
    Port 9200
    Index singh-app-logs #This is the name of the index that will be created
    HTTP_User admin
    HTTP_Passwd password-here
    Suppress_Type_Name On
    Logstash_Format Off
    Buffer_Size 256k
    Retry_Limit 10

We also need a parser to parse the log lines. This helps structure the logs so they can be searched and filtered efficiently in OpenSearch. Here's a simple regex parser that captures the timestamp and log message:

parsers.conf

[PARSER]
    Name multiline-regex
    Format regex
    Regex ^(?<time>\d{4}-\d{2}-\d{2}[ T]\d{2}:\d{2}:\d{2}) (?<log>.*)
    Time_Key time
    Time_Format %Y-%m-%d %H:%M:%S

Run Fluent Bit manually:

fluent-bit -c fluentbit.conf -R parsers.conf

This will start Fluent Bit and upload logs to OpenSearch (configured in the output section). It will create an index called singh-app-logs (or whatever name you configured) in OpenSearch.

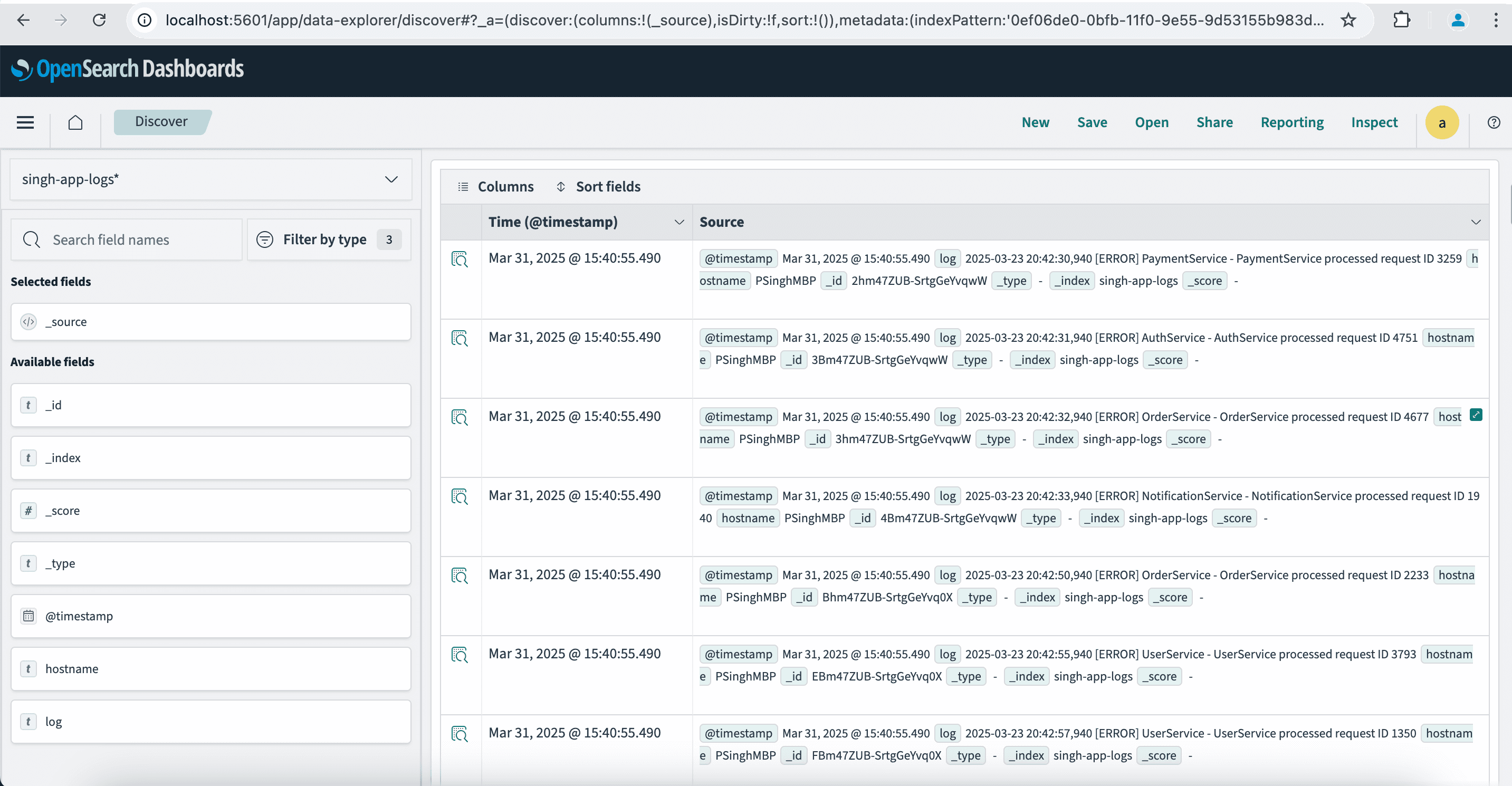

OpenSearch Discover View

OpenSearch Dashboards have powerful searching and filtering capabilities. Dashboard Query Language (DQL), can be used to create queries to search logs. Read more here.

For example the query log: "*AuthService*" AND log: "*ERROR*" will return only error logs coming from the AuthService. I

Anomaly Detection

OpenSearch has a built-in anomaly detection plugin that can be used to detect anomalies in the logs. For example, spikes in log volume or errors or unusual patterns, etc.

To detect spikes or anomalies, create a detector. A detector is a configuration that defines how to detect anomalies in the logs. You can also create detectors using the OpenSearch Dashboards UI.

Create a detector

curl -u admin:password_here -X POST http://localhost:9200/_plugins/_anomaly_detection/detectors -H 'Content-Type: application/json' -d '
{
  "name": "singh-app-log-spike-detector",
  "description": "Detects spikes in log volume",
  "time_field": "@timestamp",
  "indices": ["singh-app-logs"],
  "filter_query": {"match_all": {}},
  "detection_interval": {"period": {"interval": 1, "unit": "Minutes"}},
  "window_delay": {"period": {"interval": 1, "unit": "Minutes"}},
  "feature_attributes": [
    {
      "feature_name": "log_volume",
      "feature_enabled": true,
      "aggregation_query": {
        "log_volume": {
          "value_count": {
            "field": "_id"
          }
        }
      }
    }
  ]
}'

To start the detector, run:

curl -u admin:your-password-here -X POST http://localhost:9200/_plugins/_anomaly_detection/detectors/<detector_id>/_start

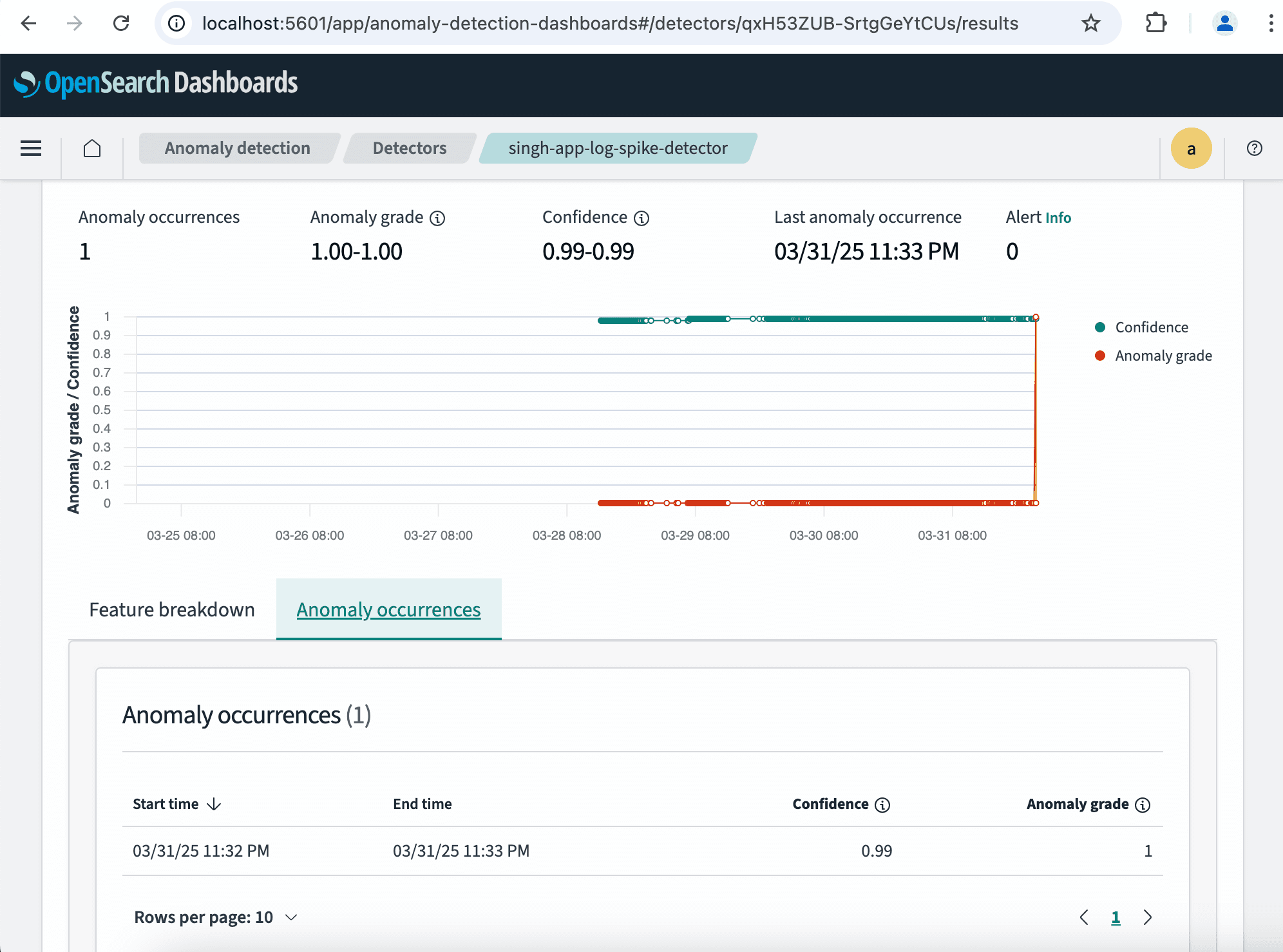

Detector View

Cleanup & Reset

To re-run ingestion of logs, delete the index and FluentBit database:

• Delete index: curl -X DELETE localhost:9200/singh-app-logs
• Delete Fluent Bit DB: rm /tmp/fluentbit.db
• Re-run Fluent Bit

I just scratched the surface of OpenSearch and FluentBit. There's a lot more to these platforms. The idea of this post is to present a use case to quickly set up a logging pipeline for troubleshooting.

If you have worked with OpenSearch, FluentBit and other logging platforms, I'd love to hear your thoughts.
